XXH-PB006-3
Availability: | |
---|---|
Quantity: | |
It is also useful for providing support for signage as well as product or parts feeding. To give an example, the device can often be seen in retail stores such as Wal-Mart where it is used for displaying electronic products or other items on sale.

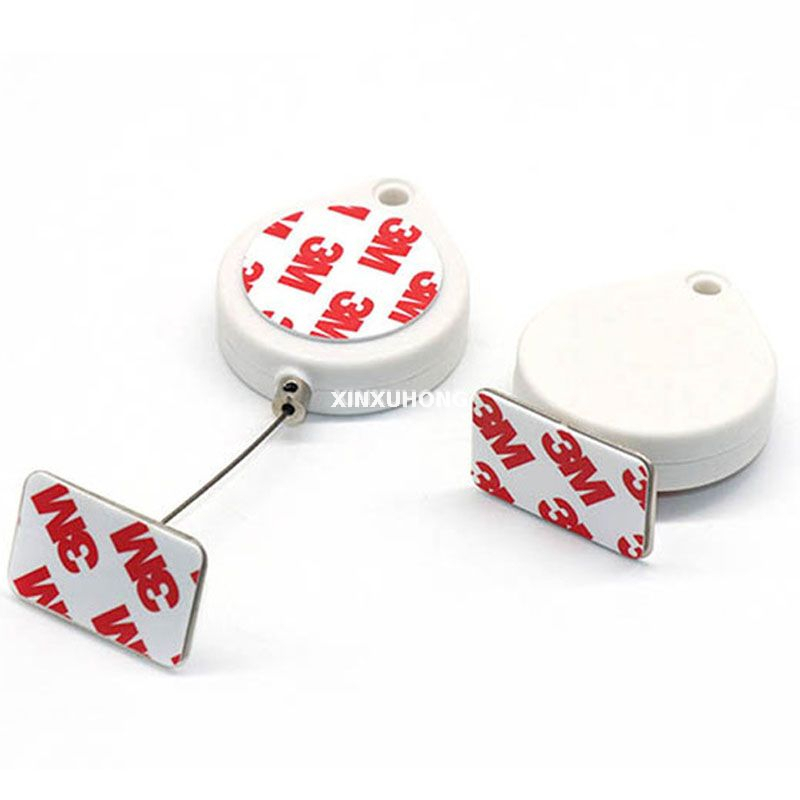

Product Name | Pull box |
Material | Stainless steel + ABS plastic |
Size | 54*45*14mm |
Function | Anti theft ,retractable,Anti-theft,Anti-lost,Display,Security etc |
Cord length | 400-1000mm |
Application | Counter display, supermarket items security,mobile phone etc |
Cord Diameter | 0.45/0.6mm/0.9mm |
Pull force | 0.5-2LBS or custom |
Installation:
1.Installation of copper column lock head
① First use the small wrench provided to unlock the A lock, lock the product and then fix it. The distance between the AB copper pillars can be adjusted arbitrarily with the small wrench. When loosening the single lock, be careful to prevent the wire rope from completely retracting into the wire box.
② After locking the product, adjust the distance between the AB lock heads, tear off the 3M glue on the surface of the wire box, and fix it on the desktop or wall, etc., complete the installation, and the product is in a theft-proof state.
2.Installation of 3M terminal with iron cap and soft rubber end
First, peel off the 3M glue on the terminal and fix it on the surface of the product. Adjust the display distance. Then peel off the 3M glue on the surface of the wire box and fix it on the table or wall. After the installation is completed, the product is in anti-theft status.
