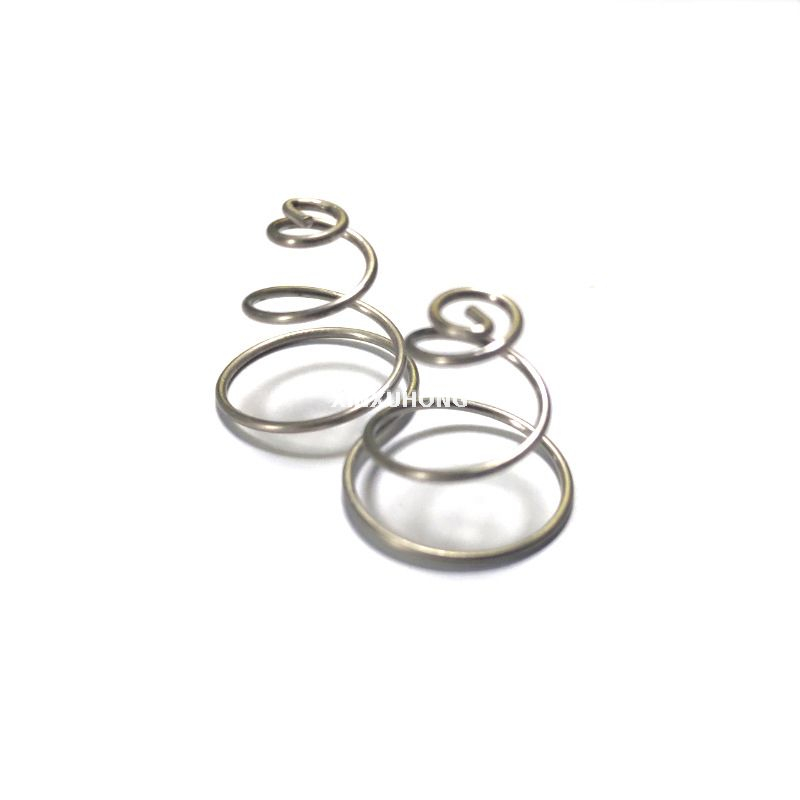

Large Compression Springs

5 0 Reviews

Model:
CS-007

Quantity:
Availability:





Inquire Add to Basket

Product Description

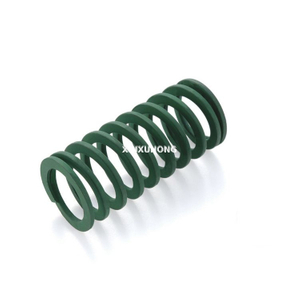

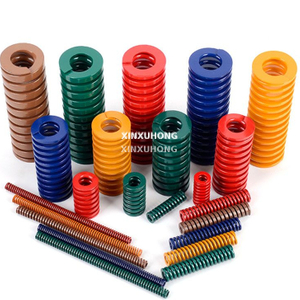

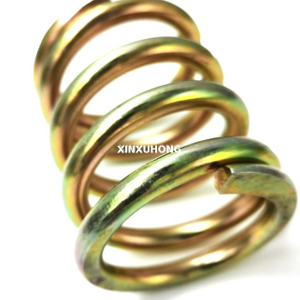

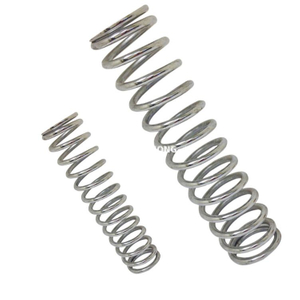

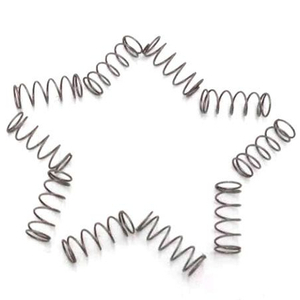

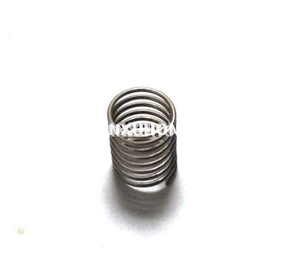

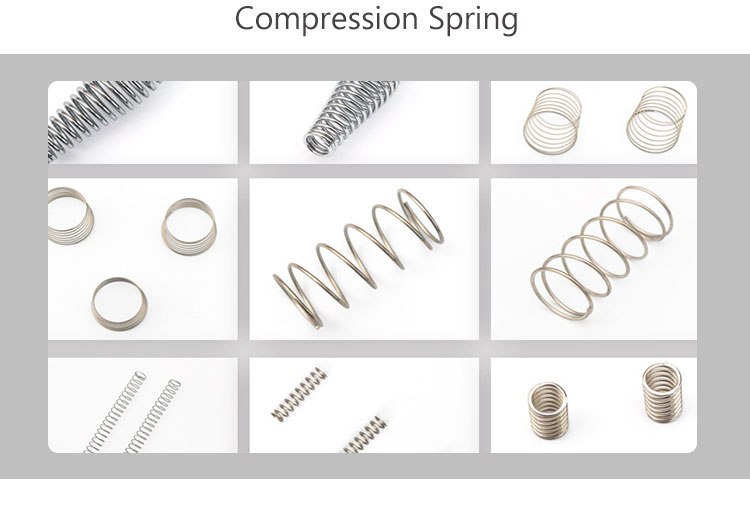

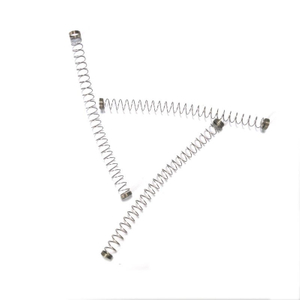

COMPRESSION SPRING

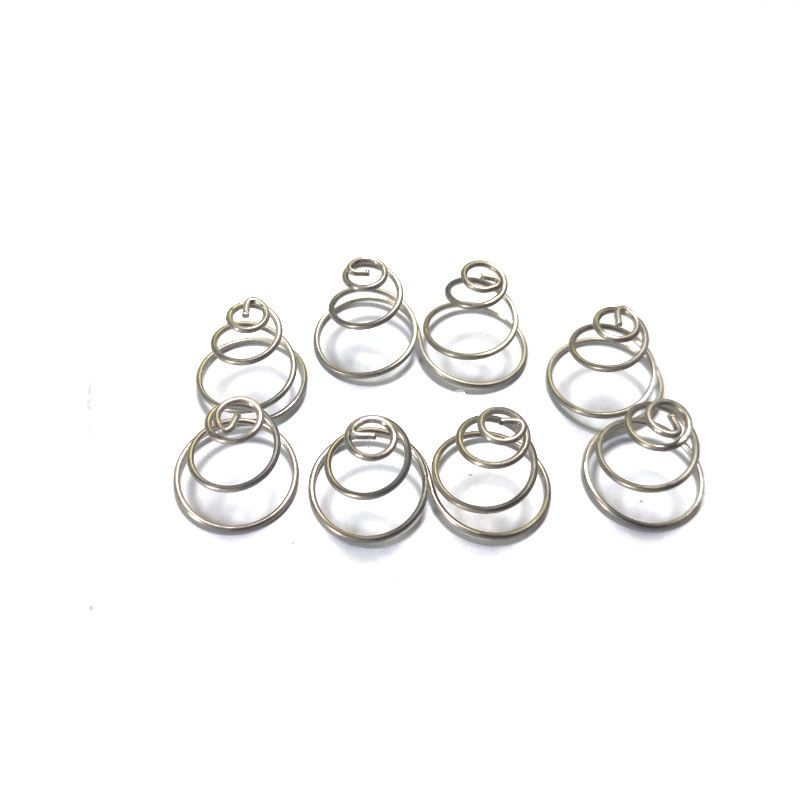

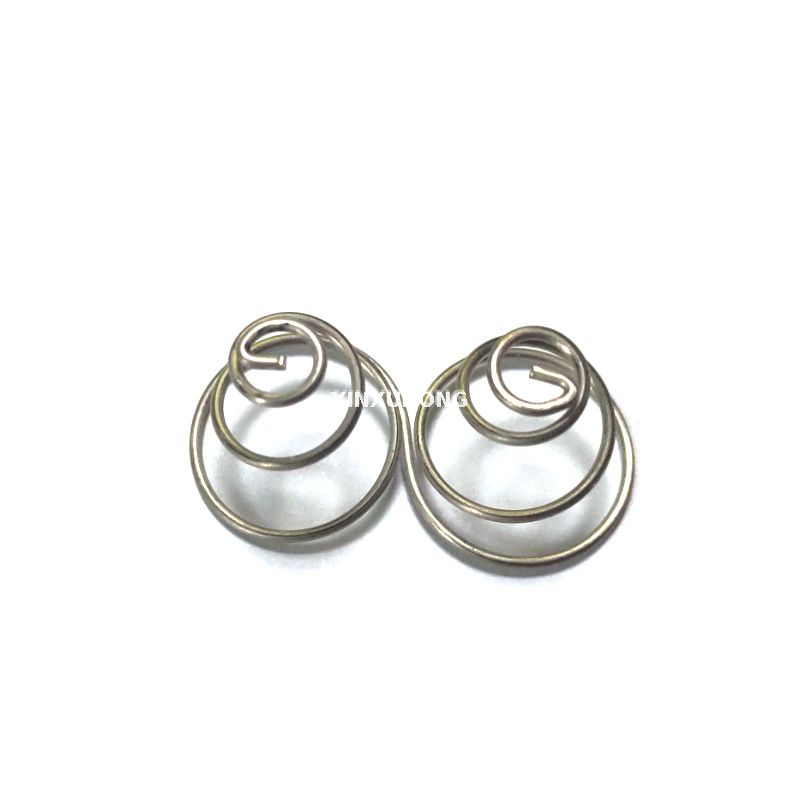

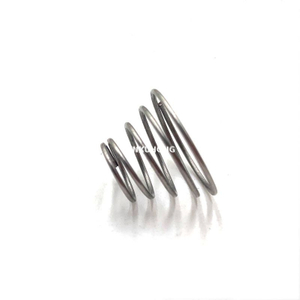

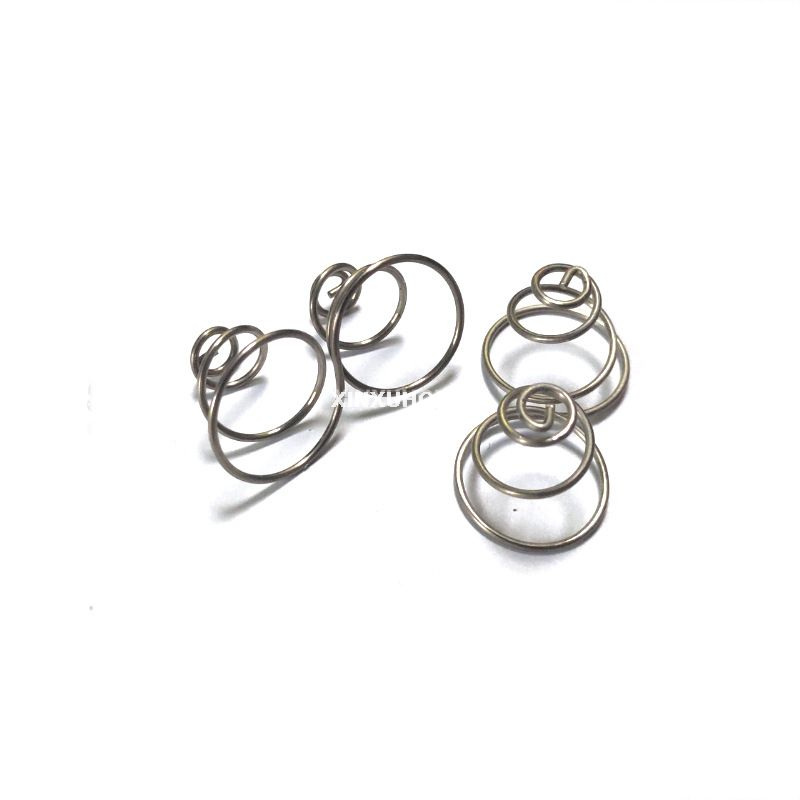

Torsion spring is a mechanical component that uses elasticity to work, usually made of spring steel, used Compression spring (compression spring) is a spiral spring that bears axial pressure. The material used is mostly circular in cross-section, and can also be made of rectangular and multi-strand steel coils. The spring is generally of equal pitch, and the shapes of compression spring include cylindrical, conical, convex, concave, and a small amount of non circular. There is a certain gap between the coils of compression spring, and when subjected to external load, the spring shrinks and deforms, storing deformation energy. Xinxuhong Compression spring main application directions: medical respiratory equipment, medical mobile equipment, hand tools, home care equipment, shock absorbers, engine valve springs.

Common materials	Spring steel/65 manganese steel/piano steel wire/stainless steel
Uncommonly used materials	Oil tempered steel wire/brass wire/white copper wire/copper wire/tinned wire/phosphorus copper wire/galvanized wire/flat wire
surface treatment	White zinc/blue zinc/colored zinc/black zinc/nickel/black nickel/gold plating/silver plating/electrophoretic black/blackening/non electrodeposited nickel/electrophoretic white/teflon
Elastic comparison	Qin steel>65 manganese steel>spring steel>stainless steel
High temperature resistance comparison	65 manganese steel>spring steel>piano steel>stainless steel
Price comparison	Stainless steel>Qin steel>65 manganese steel>Spring steel
Compression, stretching, torsion, and irregular springs	Available range $0.05MM-6.0MM
Spring plate	T0.1MM-T2.5MM
Sample time	3-5 days
Delivery date	5-7 working days

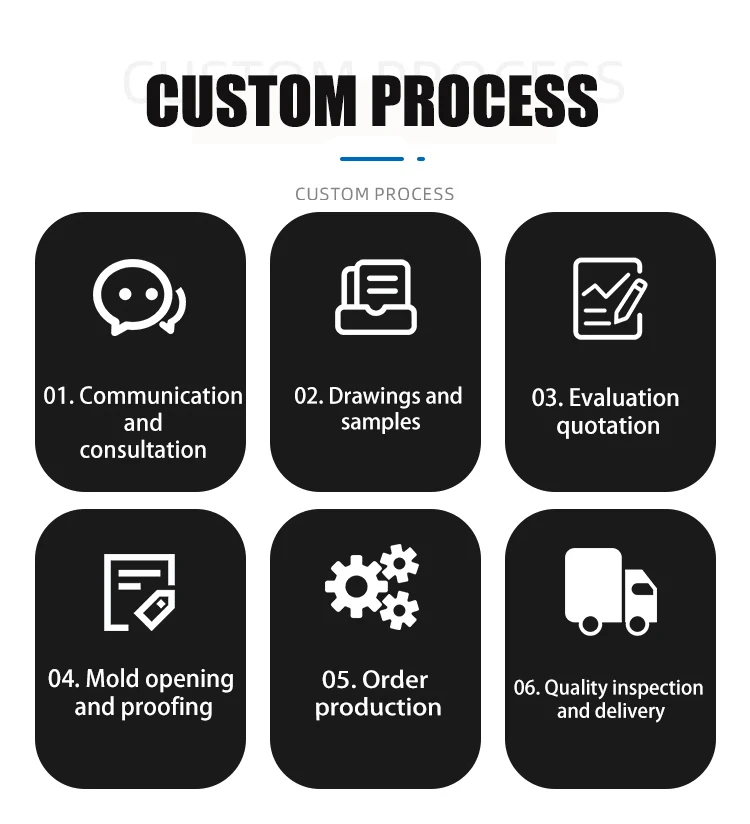

How to Order?

1.Due to each spring is the most unique requirements specifically designed for guests.So we offer customized services.Despite being customized, we will still provide you with the most suitable price,try our best to save customer's money.We are willing to establish a mutually beneficial partnership.

2.In order to provide you with a more accurate quotation, we need you to provide us with information about your design:

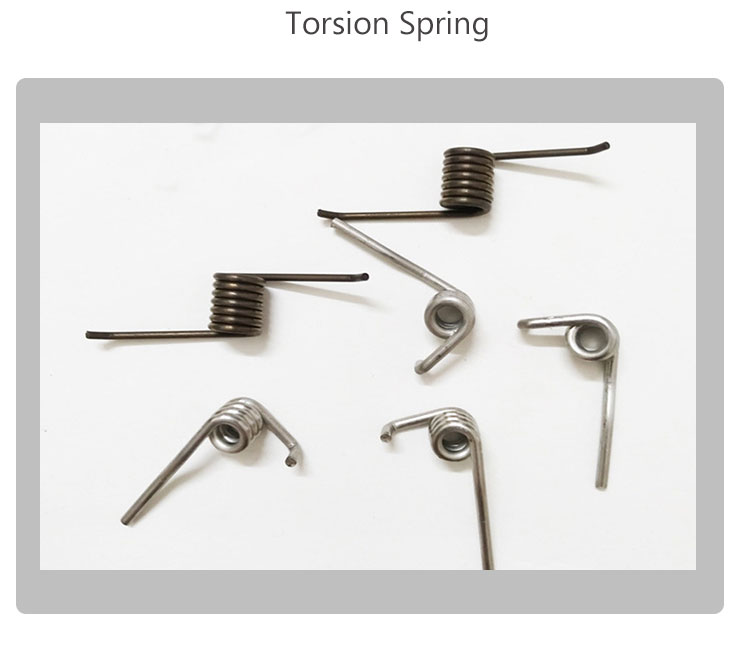

*Torsion Springs Provide parameters for customized torsion springs
*P1 wire diameter (diameter of spring steel wire);

*Outer diameter (diameter of the outer circle of the spring);

*Number of coils(effective number of springs);

*Unfolded length (the unfolded length of the spring material);

*Angle (the original angle between two twisted feet);

*EWAA2 rotation direction (left/right rotation);

*Provide technical requirements for springs: material (material of
the spring);

*Surface treatment

(blackening/galvanizing/plating/electrophoresis/painting...) strength requirements (elastic performance);

*Wire diameter * outer diameter * angle * length * number of turns

CAD ,JEPG,PDF file, any drawings or files are ok for us.

3.If you don't have any drawing or file, there is another way we can do.Please kindly provide us the sample that you have.

A long-term and good cooperative relationship cannot be separated from the joint efforts of both parties. We once again thank all
customers for their support and trust!

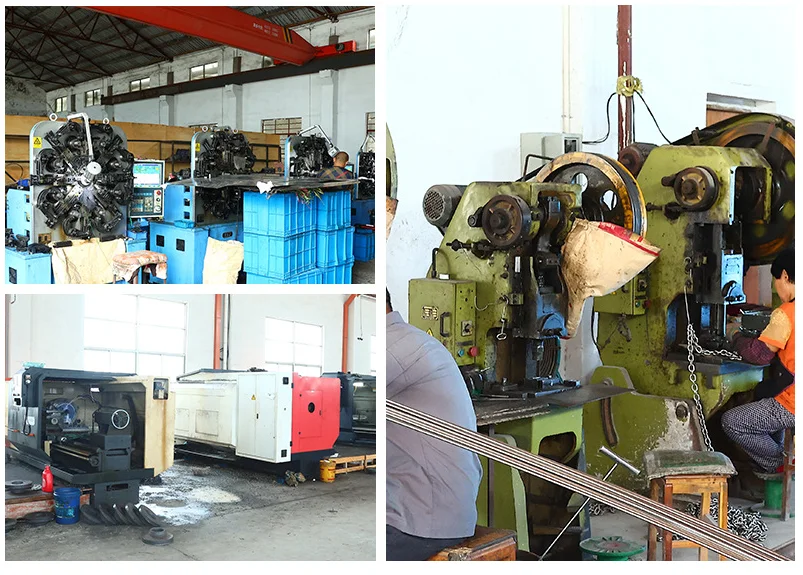

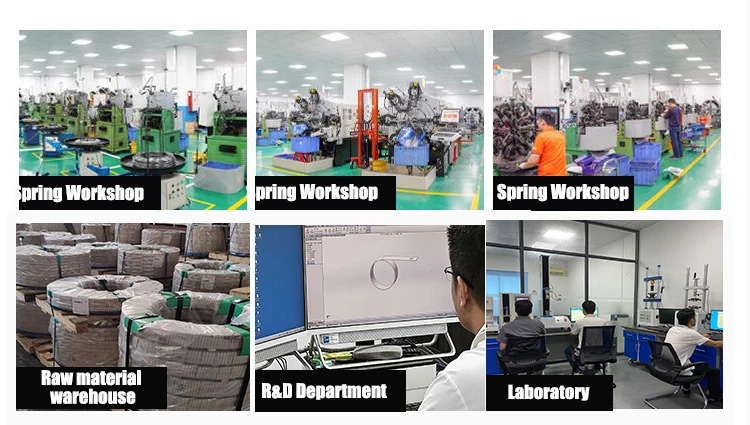

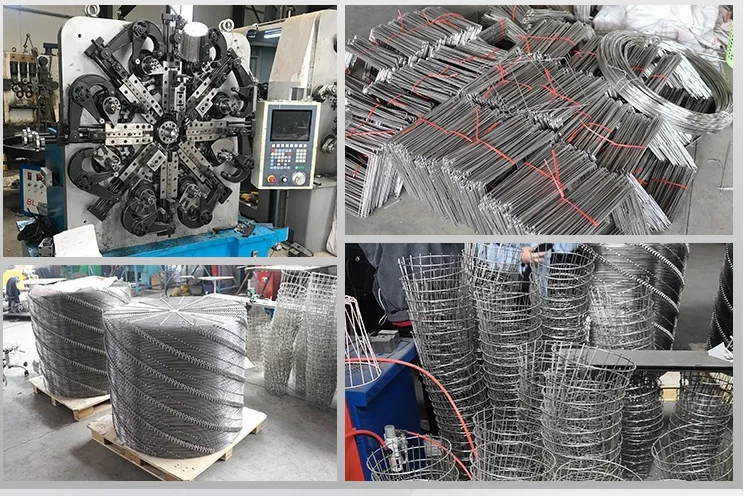

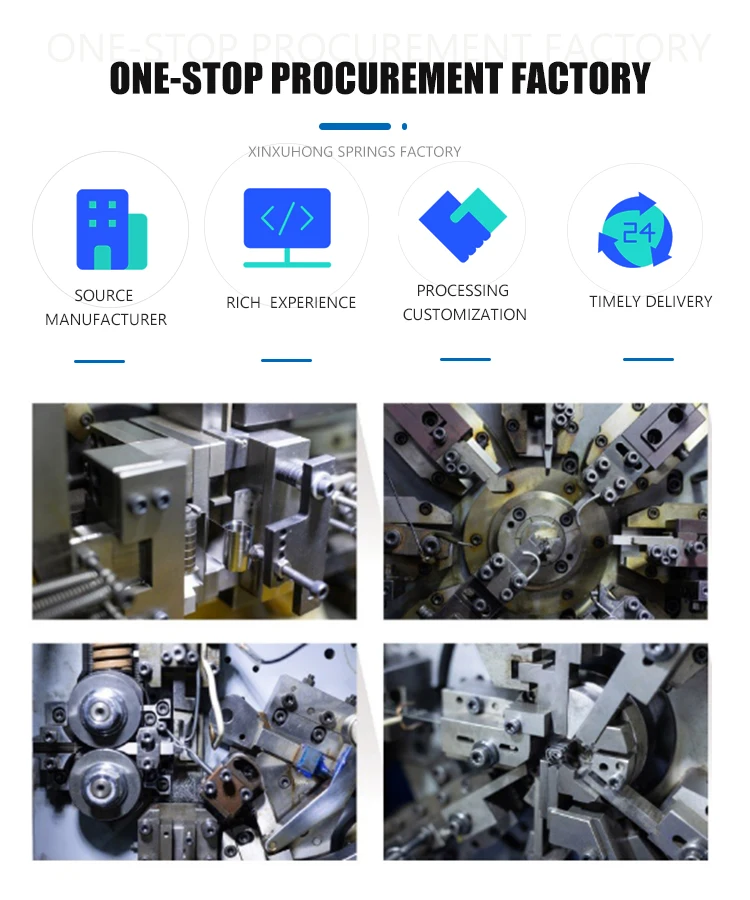

Dongguan Xinxuhong Precision Hardware Co., Ltd. has 20 years of production experience, with the fastest delivery time of 3 days. We can provide spot samples, with a minimum order of 10 non-standard items.

WHAT WE SUPPORT

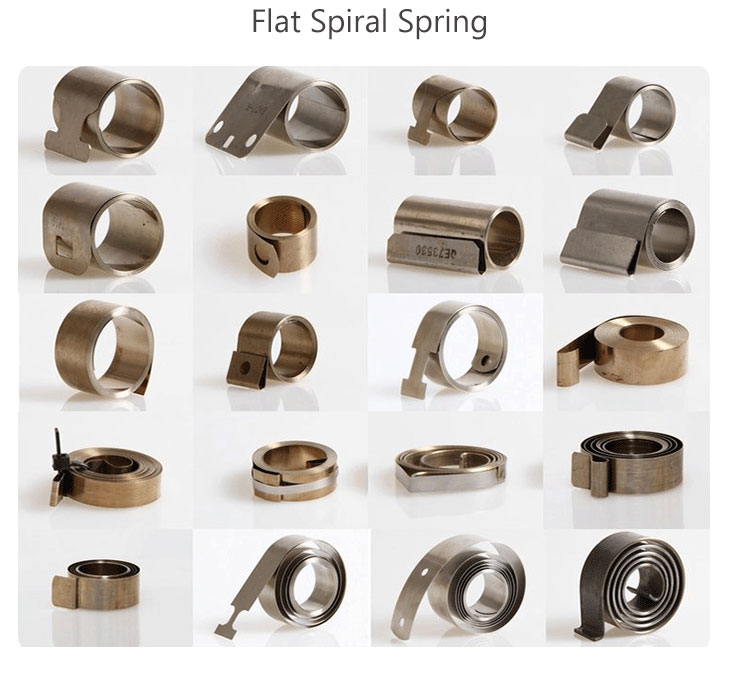

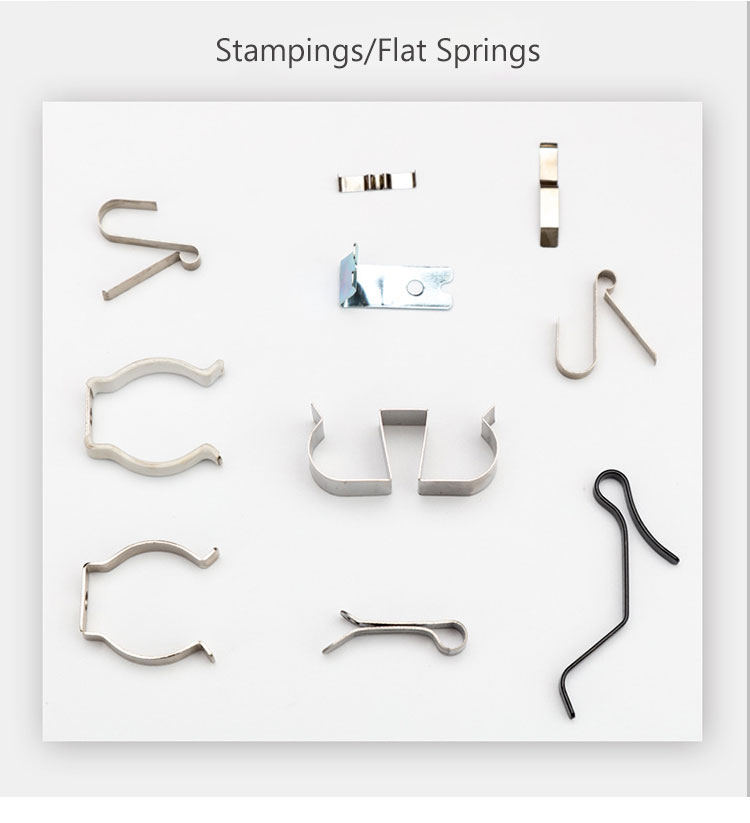

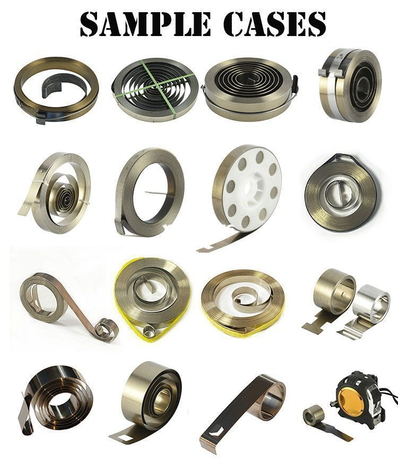

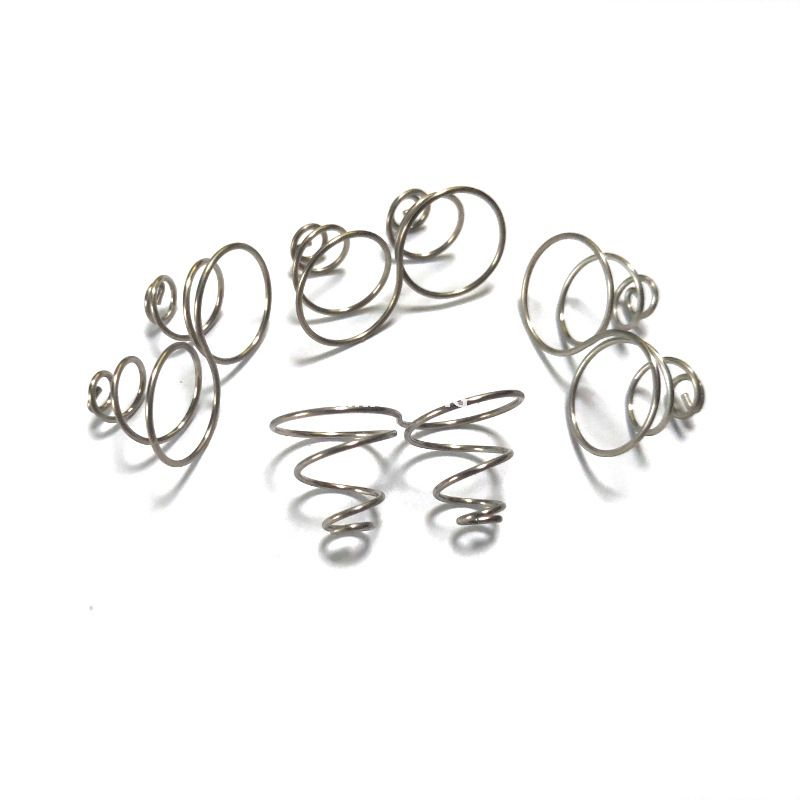

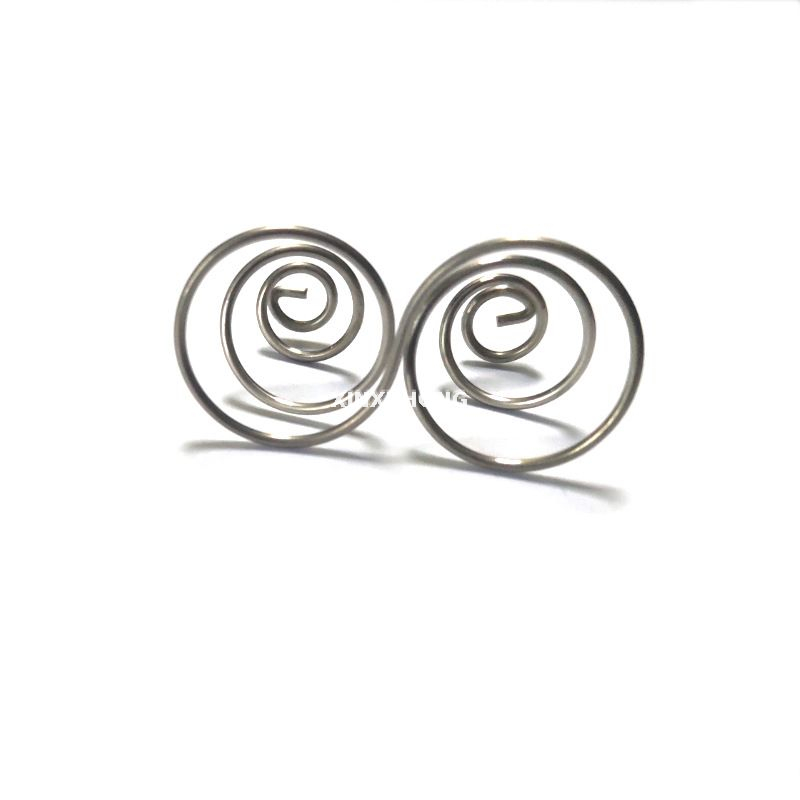

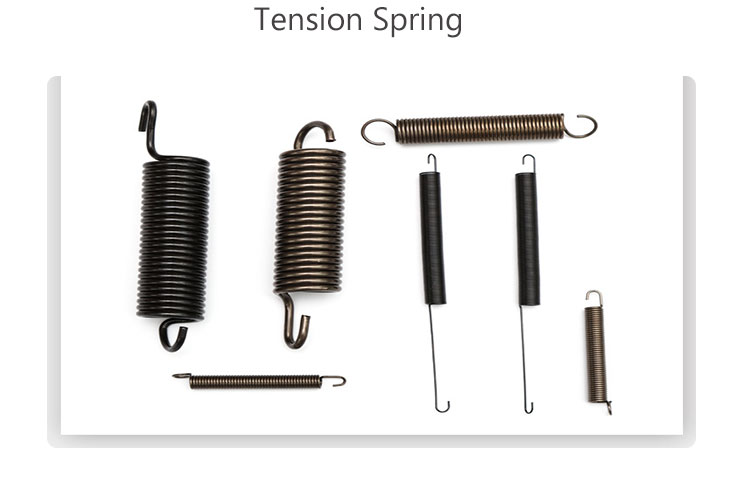

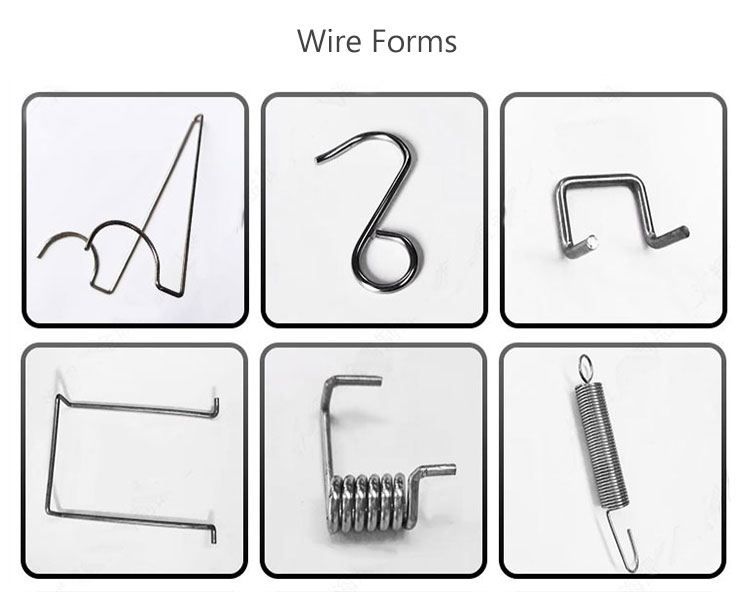

Product Scope: We can produce high-precision compression springs with a wire diameter of 0.06-20mm, tension springs, irregular springs, torsion springs, scroll springs, touch springs, battery springs, flat springs, rectangular spring wires, forming springs, bending processing springs, ball springs, coil springs, contact springs, waveform springs, clip springs, tower springs, wire wires, spring plates, money springs, spring springs, sofa springs.

Scope of use: Mechanical, electronic, electrical, lockset, toy fishing gear, car stroller, timer.

The product price is only a symbol of price, and the specific price depends on the craftsmanship, color, and quantity. Customized products are generally non refundable or exchangeable without quality issues. Please be informed.

Service		Note
Size customization	√	/
Package customization	√	/
MOQ	10-30PCS	Samples
Delivery time	5-15 work days	/
